Cummins Engine Part Exhaust Manifold 3638160 for Cummins G50/K50/QSK50 Engines

Cummins Engine Part Exhaust Manifold 3638160 for Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

Products Details

Company Introduction

Raptors, the authorized dealer of Cummins (China), established in 2015 by Mr. Jordan Wang who worked in Cummins (China) for 8 years, Jordan had been responsible for mine market for 4 years during working in Cummins china, so we have big advantages for almost all genuine Cummins generators, engine assembly and spare parts, especially for NTA855, KTA19, KTA38, KTA50, QSK60, QSX15 etc...

Exhaust Manifold

The exhaust manifold is connected to the engine cylinder block, and collects the exhaust gas of each cylinder into the exhaust manifold with branched pipes. The main requirements for it are to minimize the exhaust resistance and avoid mutual interference between the cylinders. When the exhaust is too concentrated, there will be mutual interference between the cylinders, that is, when a cylinder exhausts, it happens to encounter the undischarged exhaust gas from other cylinders. This will increase the resistance of the exhaust, thereby reducing the output power of the engine. The solution is to separate the exhaust of each cylinder as much as possible, one branch for each cylinder, or one branch for two cylinders, and to lengthen each branch as much as possible and form it independently to reduce the mutual influence of gases in different pipes.

Features and requirements

Early automobile engines had low power per unit weight, low fuel combustion efficiency, and the exhaust gas temperature did not exceed 500 °C. With the improvement of the efficiency of the automobile engine, the exhaust temperature is increased to 600~650 ℃. In recent years, developed countries have continuously improved automobile exhaust emission standards, and the application of catalytic technology and turbocharging technology has significantly increased the operating temperature of the exhaust manifold, reaching above 750 °C. With the further improvement of engine performance, the working temperature of the exhaust manifold will also increase. At the same time, with the advancement of engine technology, the structure of the exhaust manifold is also complicated. In addition, it works under the condition of cyclic and alternating temperature, which requires the material of the exhaust manifold not only to have good high temperature performance, but also to have Good casting properties. Therefore, the exhaust manifold material must have the following characteristics.

Product Parameter

Part name: Exhaust Manifold
Part number: 3638160
Brand: Cummins
Warranty: 6 months
Material: Metal
Color: Silver
Packing: Cummins Packing
Feature: Genuine & Brand New
Stock situation: 1 pieces in stock;
Unit weight: 22kg
Size: 45*33*30cm

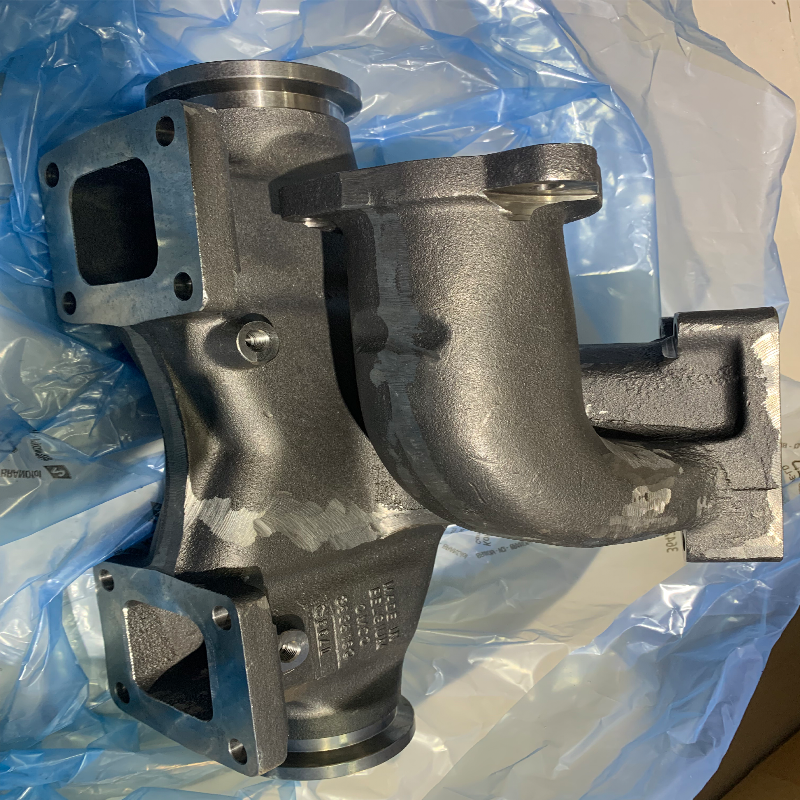

Product Pictures
